EMIGMA for Resistivity/MMR/IP and MIP

Product Overviews for:

Download IP/MIP/RESISTIVITY/MMR Description

Download IP/Resistivity/MMR demo database
(works with our EMIGMA DEMO SOFTWARE)

IP/Resistivity/MMR/MIP Flyer

3D GRADIENT RESISTIVITY INVERSION
Click image to enlarge

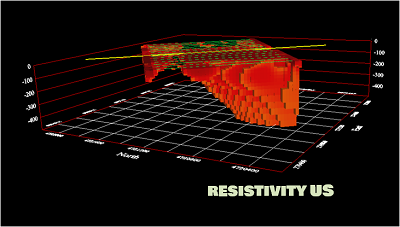

3D GRADIENT RESISTIVITY INVERSION

This software package is available as a standalone license but also part of the EMIGMA Complete licenses. It allows for various geophysical survey configurations (dipole-dipole, pole-dipole, gradient, borehole, cross-hole, Schlumberger, Wenner) but as well, more experimental designs. It offers a full range of functionalities required for the successful interpretation of IP/Resistivity data.

Includes functionality for MMR and MMR in both time and frequency domain.

3D Modeling

Crosshole resistivity modeling
Click image to enlarge
Crosshole resistivity
modeling

EMIGMA's tools for 3D geophysical modeling of both Resistivity and IP are exceptional. The solutions are stable for electrodes near or inside anomalies; they are fast and accurate and on the IP side include many of the physical effects unavailable in other applications. With EMIGMA, you can model the so-called EM effects, susceptibility effects, off-time or out-of-phase resistivity contrast effects and you can also obtain MIP/MMR solutions.

  • Fast and accurate 3D simulations: model suite generation and batch mode
  • Unlimited prism, plate, polyhedra and sphere targets
  • Multiple body interactions
  • Modeling of topography effects
  • Frequency-domain and time-domain IP
  • Magnetic effects in IP/Resistivity data
  • Variations in resistivity and Cole-Cole parameters
  • Ability to handle full contrast between host and bodies
  • Electric field pickup effects on current and voltage wires (cross talk)
  • Interactive 3D model building tool

3D Resistivity Inversion

  • Supports dipole-dipole, pole-dipole and pole-pole surveys
  • Supports gradient and surface to borehole surveys
  • User defined starting model and inversion parameters
  • Model resistivity constraints

1D Resistivity Inversion

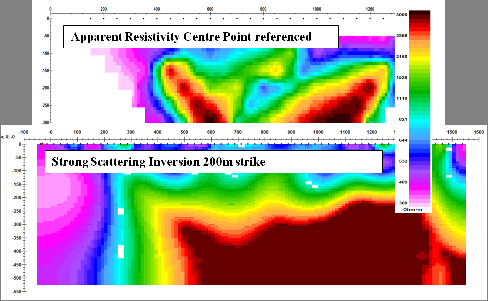

Inverse Resistivity Section
Click image to enlarge
Inverse Resistivity Section
  • Resistivity depth inversions and 3D volumes
  • Smooth Occam technique with fixed layer thickness
  • Underparametrized non-linear Trust Region technique with full resistivity and thickness constraints
  • User defined starting model and inversion parameters

Data Display and Analyses

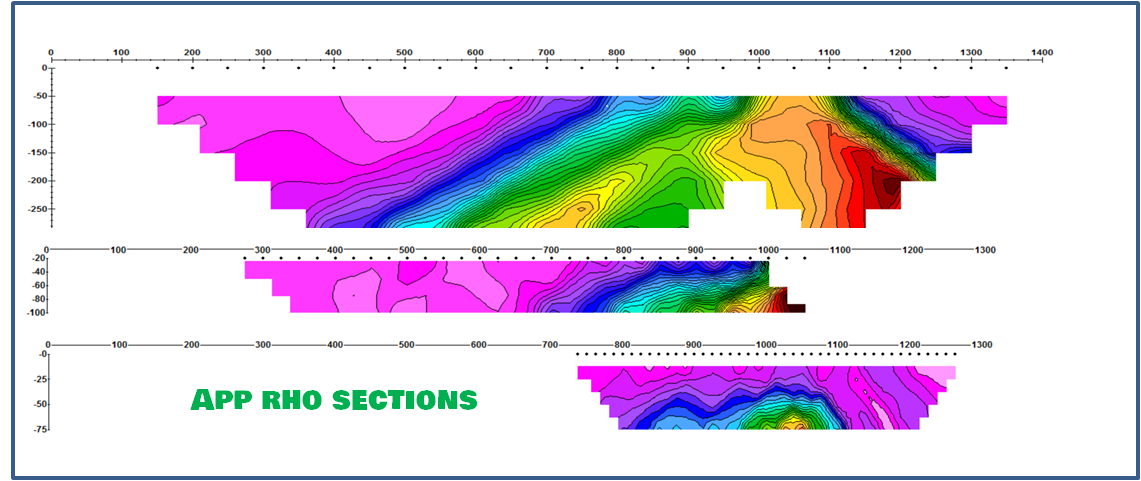

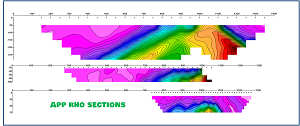

Raw data section
Click image to enlarge
Raw data section
  • 3D Model Display and Editing with associated 3D data display to assist model design
  • Cross/Plan Section displays of 3D inversions
  • Pseudo-sections, depth images
  • Multi-parameter data grids
  • Grids: Natural Neighbor, Delauney Triangulation, Minimum Curvature and Thin-Plate-Splines
  • Extensive plotting capabilities
  • Data referencing to CP, TX or RX (surprisingly useful)
For more detailed data display capabilities, see EMIGMA Complete

Data Import

  • Time Domain IP - GDD, Zonge, IRIS, Scintrex formats or as an ASCII text format
  • Frequency Domain IP - Zonge or ASCII text format
  • Resistivity Data with Phase if available - Zonge, SYSCAL, Generic ASCII text file
  • MMR - Crone or ASCII formats

Data Processing and Correction

  • 1D digital and spatial filters - Mean, Median, Gaussian and Sovitzky-Golay
  • Smoothing and Decimation
  • Data Corrector tool combining dynamic spreadsheets and a line plotter for data cleaning, missing data interpolation and simultaneous plotting of different data channels for fast cross-analysis
  • Survey editing and merging
