EMIGMA Premium and Professional Series

EMIGMA for IP/Resistivity

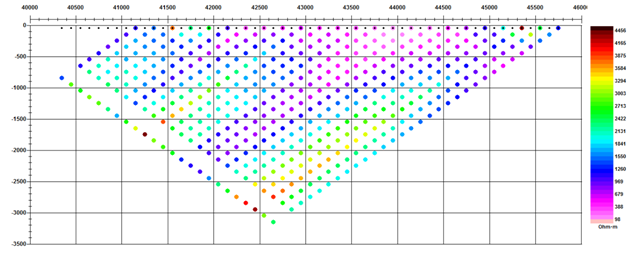

Contoured PseudoSection
Click image to enlarge
Contoured PseudoSection

The Resistivity/IP software package is available as part of EMIGMA Premium or Professional Complete, as a standalone product or an add-on to other EMIGMA software licenses. It allows for various geophysical survey configurations (dipole-dipole, pole-dipole, gradient, borehole, cross-hole, Schlumberger, Wenner) and with 3D Inversion it offers a full range of functionalities required for the successful interpretation of IP/Resistivity data.

Includes functionality for MIP and MMR

Unlimited survey size with Premium! 50,000 points with Professional!



Data Import

  • Time Domain IP - Zonge, ELREC6, Scintrex formats or as an ASCII text format
  • Frequency Domain IP - Zonge or ASCII text format
  • Resistivity Data with Phase if available - Zonge, SYSCAL(standard crosshole ASCII format),
    Generic ASCII text file

Data Processing and Correction

  • 1D digital and spatial filters - Mean, Median, Gaussian and Sovitzky-Golay
  • Smoothing and Decimation
  • Data Corrector tool combining dynamic spreadsheets and a line plotter for data cleaning, missing data interpolation and simultaneous plotting of different data channels for fast cross-analysis
  • Survey merging

3D Modeling

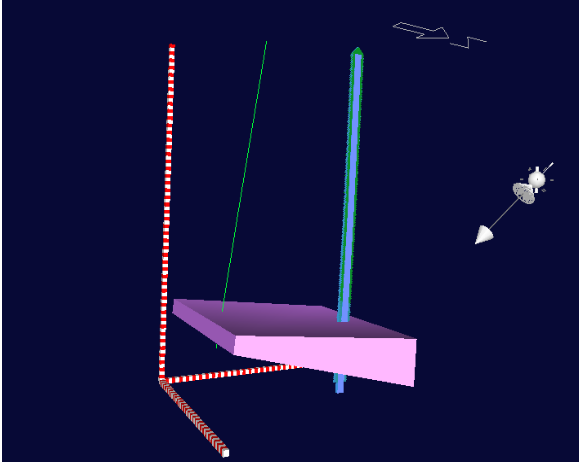

Crosshole resistivity modeling
Click image to enlarge
Crosshole resistivity
modeling

EMIGMA's tools for 3D geophysical modeling of both Resistivity and IP are exceptional. The solutions are stable for electrodes near or inside anomalies; they are fast and accurate and on the IP side include many of the physical effects unavailable in other applications. With EMIGMA, you can model the so-called EM effects, off-time or out-of-phase resistivity contrast effects and you can also obtain MIP solutions.

  • Fast and accurate 3D simulations: model suite generation and batch mode
  • Unlimited prism, plate and polyhedra targets
  • Multiple body interactions
  • Modeling of topography effects
  • Frequency-domain and time-domain IP
  • Magnetic effects in IP/Resistivity data
  • Variations in resistivity and Cole-Cole parameters
  • Ability to handle full contrast between host and bodies
  • Interactive 3D model building tool

3D Resistivity Inversion

  • Supports dipole-dipole, pole-dipole and pole-pole surveys
  • User defined starting model and inversion parameters
  • Output model resistivity constraints

1D Resistivity Inversion

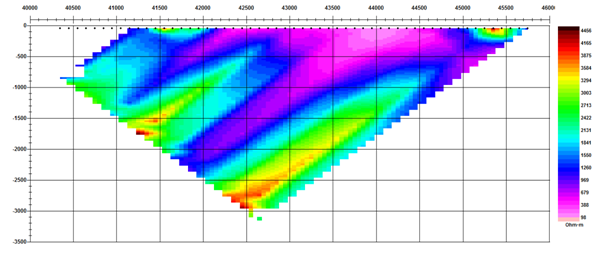

Inverse Resistivity Section
Click image to enlarge
Inverse Resistivity Section
  • Resistivity depth inversions and 3D volumes
  • Smooth Occam technique with fixed layer thickness
  • Underparametrized Marquardt technique with full resistivity and thickness constraints
  • User defined starting model and inversion parameters
  • Two forward techniques

Data Display and Analyses

Raw data section
Click image to enlarge
Raw data section
  • 3D data display as profiles, vectors, true 3D surfaces or contoured surface with 3D structure representation
  • Section cutting of 3D model displays in the 3D Visualizer
  • Pseudo-sections, depth images

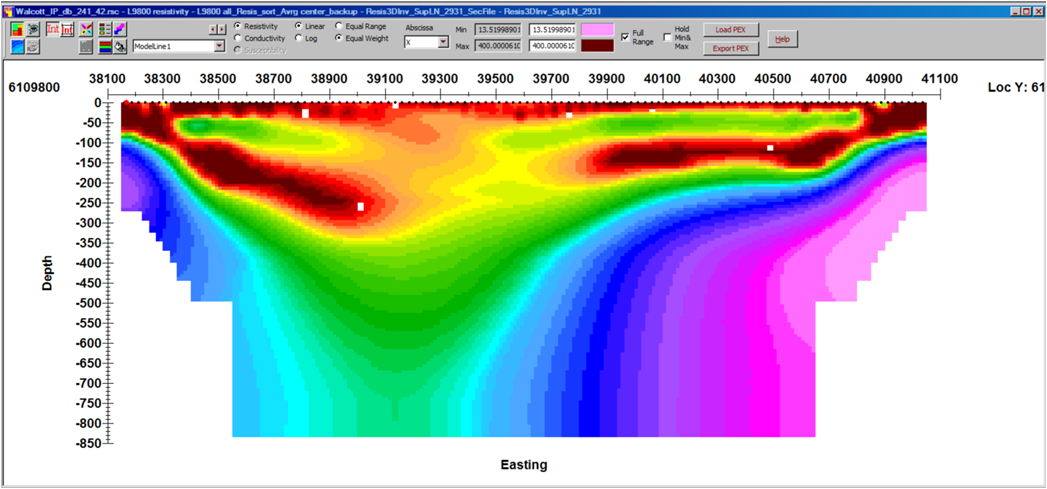

  • PEXShow tool - 2D representation of Resistivity inversions with easy-to-switch-to susceptibility and conductivity sections
  • PseudoSection tool
  • Grids: Natural Neighbor, Delauney Triangulation, Minimum Curvature and Thin-Plate-Splines
  • Contours: 2D and 3D surfaces
  • Line plots
  • Residual plots
For more detailed data display capabilities, see EMIGMA Complete
